0.6/1kV XLPE Aluminum Alloy Power Cables
发布时间：2017-05-23
EXECUTIVE STANDARDS
IEC 60502 for rate 1kV to 35kV extruding insulated power cables and accessories.
IEC 60331 for flame retardant cable
IEC 60332 for fire resistant cable

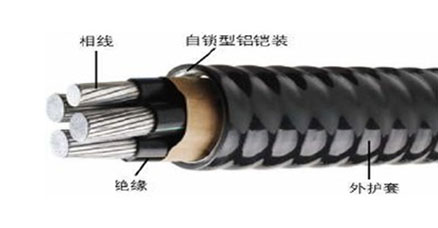

CONSTRUCTION
1. Conductor
Aluminum Alloy Conductor
2. Insulation
XLPE (cross-linked polyethylene) rated 90℃, 105℃, 125℃, 135℃.
3. Number of Cores
One core, two cores, three cores, four cores, 3+1 cores, 5 cores, 3+2 cores, 4+1cores
4. Armor
Aluminum alloy interlocked
5. Sheath
PVC, Polyolefin
|
Conductor |
Descriptions |
Remarks |
|
Al |
XLPE/PVC |
AIA: Aluminum Interlocked Armor |
|
Al |
XLPE/ AIA/PVC |
Applications:
0.6/1kV XLPE insulated power cables are used as power transmission lines and distribution systems.
Flame retardant and fire resistant type cables are especially applicable in distribution lines of fire-alarming, fire-fighting and emergency evacuation systems.
