0.6/1kV XLPE Insulated Power Cable

Executive Standards

IEC 60502 for extruding insulated power cables and accessories.

IEC 60331 for flame retardant cable

IEC 60332 for fire resistant cable

        DESCRIPTION

       Single core and multi-core cables with copper or aluminum conductor, XLPE insulated and PVC sheathed.

       Cables are rated at 0.6/1kV and conformed to IEC 60502, IEC60331 & IEC 60332.

       Flame Rating

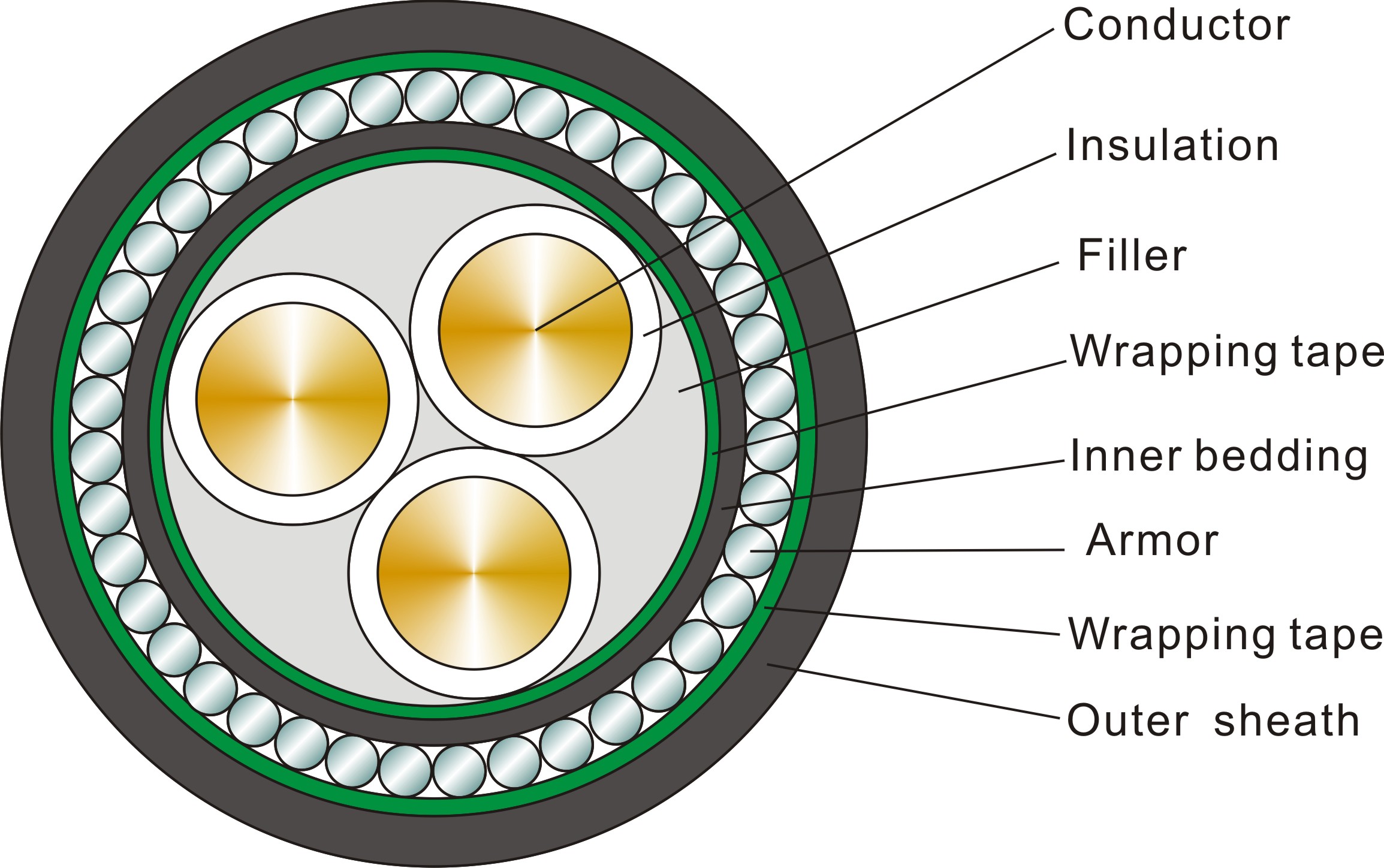

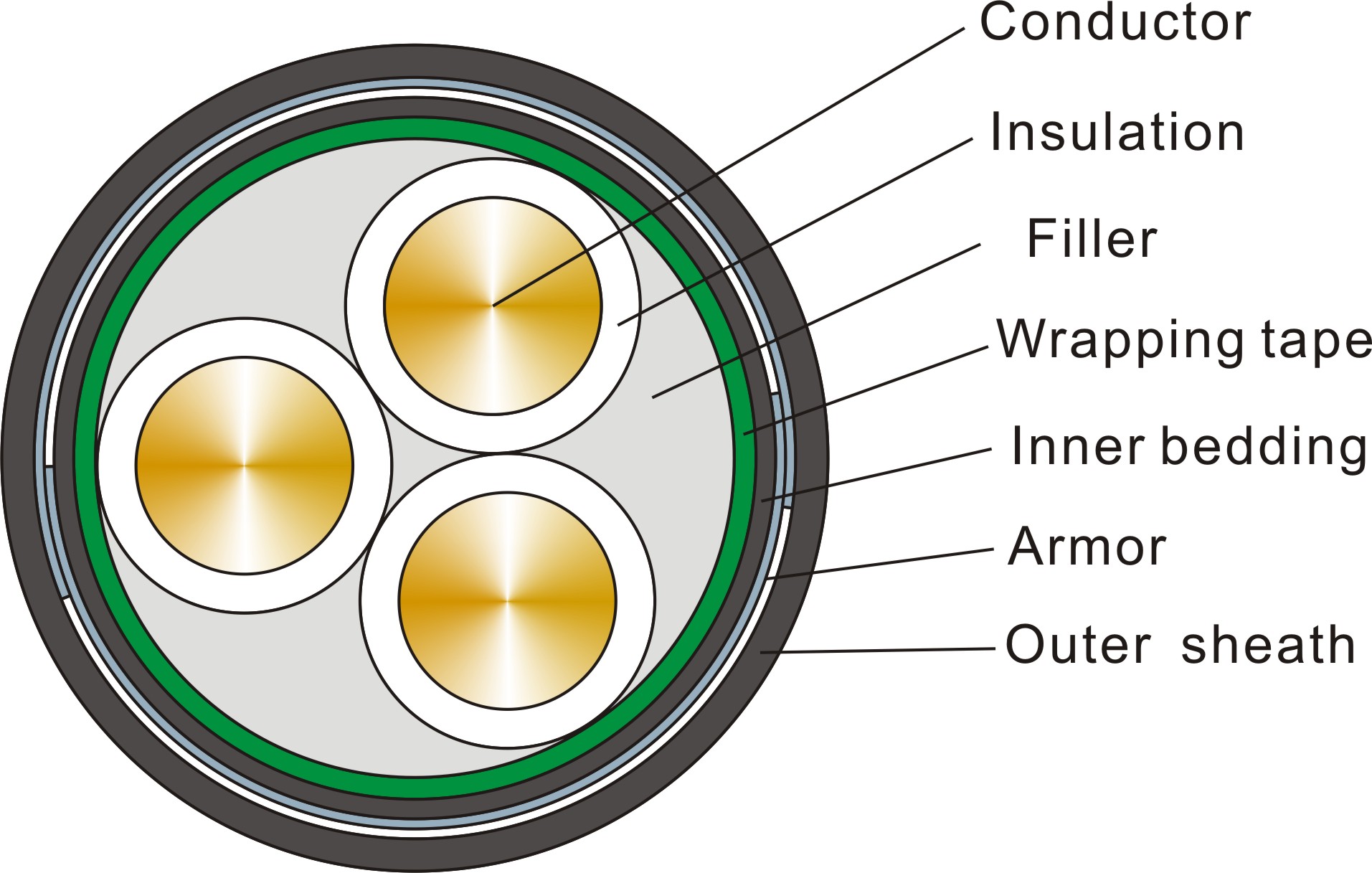

       CONSTRUCTION

      1.    Conductor

      Plain circular, compacted or shaped stranded copper or aluminum conductor conform to IEC 60228 Class 2

      2.    Insulation

     XLPE (cross-linked polyethylene) rated 90℃, 105℃, 125℃, 135℃.

      3.    Number of Cores

     One core, two cores, three cores, four cores, 3+1 cores, 5 cores, 3+2 cores, 4+1cores

      4.    Assembly

      Two, three, four or five insulated conductors are laid up together if necessary filled with non- hygroscopic material compatible with the          insulation. The filling may be omitted provided the outer shape of the cables remains practically circular and no adhesion occurs                    between cores and sheath.

      5.    Shielding

     Copper wire braided shielding

     Tinned copper wire braided shielding

      6.    Armor

     Aluminum wire

    Galvanized steel wire

    Double steel tape armor

    Non-magnetic metal-wire armor

     7.    Sheath

     PVC sheath, Polyolefin sheath

Applications:

0.6/1kV XLPE insulated power cables are used as power transmission lines and distribution systems.

Flame retardant and fire resistant type cables are especially applicable in distribution lines of fire-alarming, fire-fighting and emergency evacuation systems.
